Cyclone Exhaust Heads


  • CYCLONIC ACTION

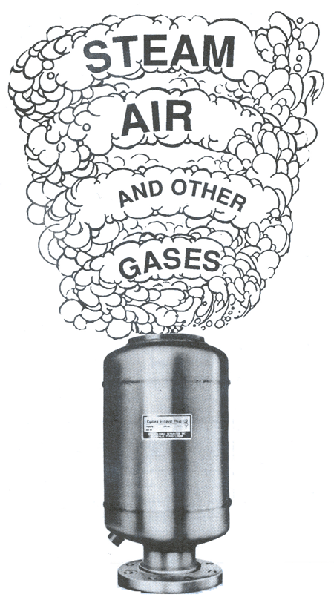

    Spins out entrained water, oil and dirt on vents
    leaving only Clean, Dry exhaust.
  • REDUCES NOISE
    Large exhaust opening reduces velocity and minimizes exhaust noise and does not produce back pressure.
  • PROTECTS LINES
    Cyclone exhaust head "Spiral Baffle" protects exhaust line from entry of rain, snow and dirt directing them to the drain.

HOW IT WORKS
Water and Oil entrained in Exhaust Steam and Gases may cause damage to roofs and sidewalls and unsightly icing and dirt accumulation. The spiral baffles swirl the steam or exhaust gases and the resulting CYCLONIC ACTION throws the entrained water, oil and dirt to the outside of the cyclone where it is directed to the exhaust head drain.

QUALITY CONSTRUCTION
All surfaces of the Exhaust Head slant toward the drain so that the unit is self-draining and self-cleaning requiring little or no maintenance. The vessel walls are constructed of A minimum 1/4" carbon steel. With all external and internal surfaces painted with high-heat aluminum, the Penn Cyclone Exhaust Head is constructed for many years of service. Its symmetrically streamlined design combines modern appearance with design efficiency.

Cyclone Exhaust Heads

Cyclone Exhaust Heads

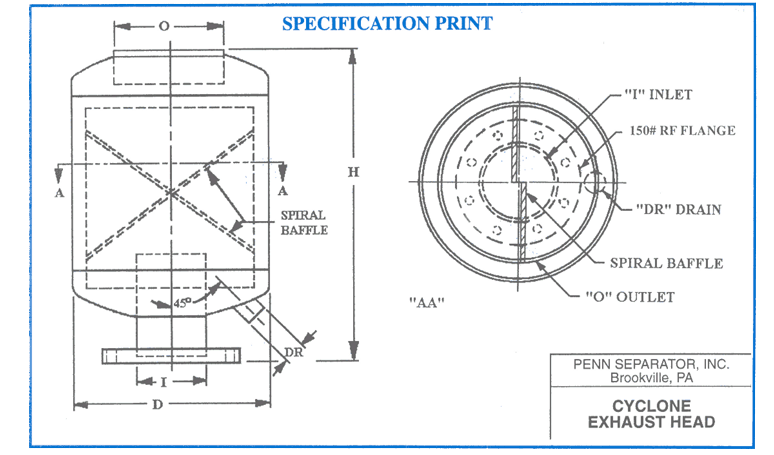

Dimensions

Rated Capacity

Model No.

"I" Inlet

"O" Outlet

"DR" Drain

"D" Diameter

"H" Height

Steam #/hr

Air Scfm

Wt. Flng.

EX 10-2

2"

6"

3/4"

10"

21"

645

280

85#

EX 10-2 1/2"

2 1/2"

6"

3/4"

10"

21"

920

400

90#

EX 10-3

3"

6"

3/4"

10"

21"

1,420

615

95#

EX 10-4

4"

6"

1"

10"

21"

2,450

1,060

105#

EX 14-5

5"

8"

1 1/2"

14"

21"

3,845

1,665

140#

EX 14-6

6"

8"

1 1/2"

14"

21"

5,540

2,400

160#

EX 20-8

8"

10"

2"

20"

26"

9,610

4,165

310#

EX 20-10

10"

12"

2"

20"

26"

15,150

6,565

330#

EX 24-12

12"

14"

3"

24"

30"

21,325

9,240

485#

EX 24-14

14"

16"

3"

24"

30"

26,000

11,270

525#

EX 26-16

16"

18"

3"

26"

38"

34,000

14,725

685#

EX 36-18

18"

20"

3"

36"

54"

45,000

19,500

1130#

EX 42-20

20"

24"

3"

42"

58"

54,000

23,160

1800#

EX 42-24

24"

30"

3"

42"

58"

69,000

29,880

1875#

EX 48-30

30"

36"

4"

48"

65"

120,000

51,600

2035#

EX 54-36

36"

42"

4"

54"

75"

188,000

81,240

2710#


HOW TO SIZE THE CYCLONE EXHAUST HEAD
Use the discharge line size to select inlet dimension (A) above. Check the maximum flow rate
capacity to the actual flow rate. Select a larger size for higher capacities as required.
