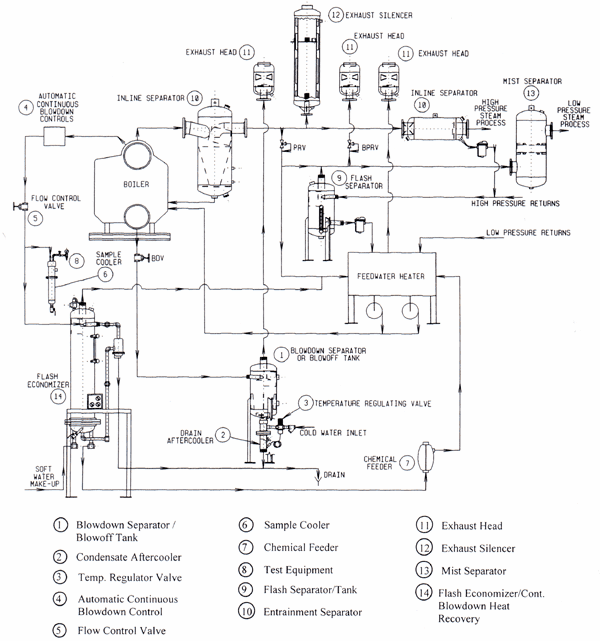

The schematic below shows
Penn products in a numerical diagram as used in a typical steam system.
The numbers represent a product line that is described under that
section of this catalog. Penn also offers a system approach such as
1, 2, 3 which can be used as a complete boiler blowdown package or
could be used individually at various locations in the plant. Some
products have other uses besides in a boiler room such as Entrainment
Separators or Exhaust Silencers for compressed air systems, natural
gas lines, and chemical processing. |
|
